Wind Tunnels

AEDC marks 50 years of service for one of its most important wind tunnels

Ben SampsonBy Ben Sampson26th November 20187 Mins Read
Share LinkedIn Twitter Facebook Email

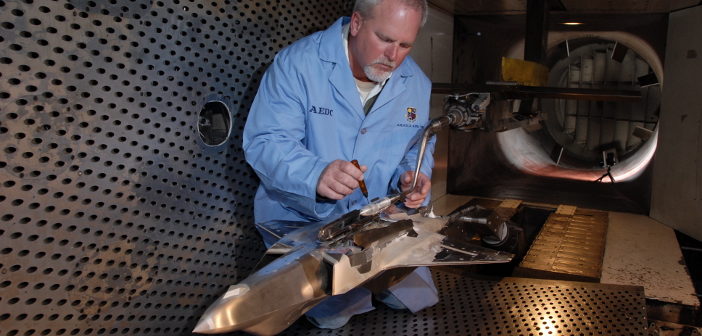

model wind tunnel inspection

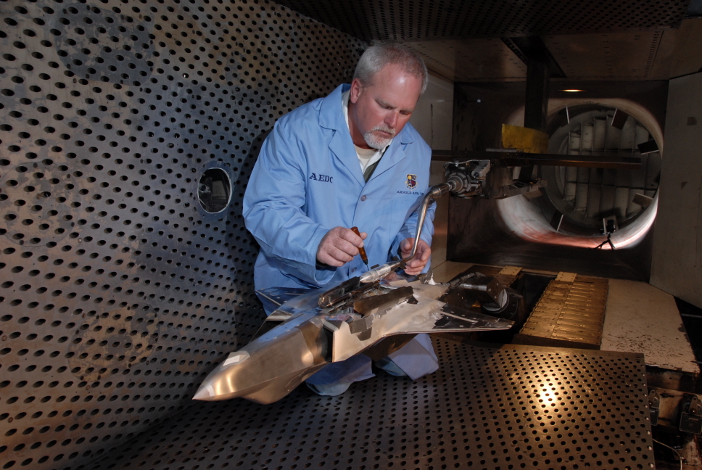

Adjustments are made to a model of a GBU-31 Joint Direct Attack Munition (JDAM) before F-35 Lightning II store separation testing resumes at Arnold Engineering Development's (AEDC) four-foot transonic wind tunnel. (Photo by Rick Goodfriend)

Arnold Engineering Development Complex (AEDC) in Tennessee is celebrating 50 years of service for its 4T wind tunnel, which has been used for the development of  new weapons and stores used on high-speed jet aircraft.

Development of the The 4ft (1.2m) transonic wind tunnel at the AEDC dates back to the early 1960s, when the US Air Force recognized that with the advent of the jet age, the development of new weapons that could be safely separated from aircraft and accurately strike the intended targets was critical.

Dr Edward Kraft, Arnold Engineering Development Complex (AEDC) fellow and University of Tennessee Space Institute associate executive director of research said, “Eglin Air Force Base wanted to get more insight, more information. So they engaged AEDC about whether they could put together a wind tunnel to look at these configurations of interest and give them better insight into the safety and the ability to hit a target. That was the genesis of it.”

In the early 1960s AEDC had two tunnels within the speed range of Mach 0.3 to 1.5 – a 1-foot transonic wind tunnel and a 16-foot transonic wind tunnel. Both were regularly fully booked for use.

By 1966 the design of 4T had been finalized and construction had started on the US$1,150,000 tunnel. The wind tunnel took 15 months to build and was completed in November 1967.

wind tunnel model

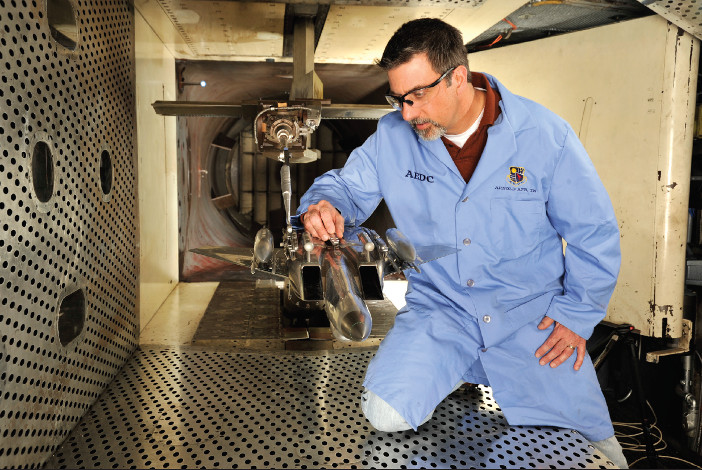

An inspection of a 1/20-scale model of an F-15E Strike Eagle Aircraft and a sting-mounted Small Diameter Bomb during a break in an ongoing store separation test



Design and features of 4T

The 4ft transonic wind tunnel was described in technical reports published at the time as a “closed-loop, continuous flow, variable-density tunnel.” The continuous-flow aspect of 4T allowed the tunnel to have greater run times than blowdown tunnels.

An individual compressor system was not installed for 4T to save money. Instead, the new wind tunnel was connected to the existing Plenum Evacuation System compressors in the Propulsion Wind Tunnel (PWT) facility.

The tunnel was the first to use a Captive Trajectory System (CTS), a six degrees-of-freedom system that allowed for the simulation and study of weapon and store separations. It also featured variable porosity walls to allowed operators to control wave attenuation and blockage effects on a test article.



First tests

The first time 4T was used on January 29, 1968, it was for the US Air Force Armament Laboratory to test of a Hard Structure Munition missile model at transonic speeds.

A few months later the first store separation test was conducted – to determine the dynamic and static stability characteristics of the AGM-12E missile and to investigate the separation characteristics of the missile from the inboard wing pylons of the F-105 aircraft. The testing determined that the store would separate from the inboard pylon without jeopardizing the aircraft.

After its first decade of operation, 4T was being credited with saving millions of dollars and eliminating the need for thousands of hours of flight testing in the development of payloads for military aircraft.

By 1978 it had been used by test programs for the Air Force, Army, Navy and NASA. These tests supported the development of stores and certified their use with numerous aircraft, including the F-105, F-4, A-7 and A-10.

model harrier jump jet
Marine Corps Harrier Jump Jet store separation tests were conducted in 1981 in the 4-foot transonic wind tunnel at Arnold Air Force Base (Image: AEDC)

Developments in design and technology

The 4ft wind tunnel has continued to evolve over the years. Nozzle blocks were added in 1971, allowing 4T to exceed its original maximum Mach number of 1.35 up to Mach 2.0. In April1989 a flexible nozzle was installed to enable Mach numbers greater than 2.0.

As well as speed increases, a grid technique for analyzing store separation was developed in the early 1980s which replaced the laborious captive trajectory mode method.

With the grid technique, the weapons system was placed under the parent aircraft in a grid arrangement. Data was then collected on the store at different orientations in the space beneath the aircraft.

In the late 1980s, the Computational Fluid Dynamics team at Arnold developed a method of simulating stores released from aircraft at high transonic speeds. At around the same time, AEDC brought a store separation graphics analysis program.

The upgrades allowed engineers to complete wireframe models of test articles and see a 3D store trajectory display within moments of a test.

Data systems have also continuously improved over the years, said Kraft, who has witnessed much of the upgrade work at 4T as a full-time engineer and as assistant branch manager in 1980. “They constantly kept the tunnel at the leading edge,” he said. “It’s still the best store separation wind tunnel in the country and, probably, in the world.”



Modern use

According to AEDC, the demand for 4T has been increasing since 2012 and is expected to remain strong for the foreseeable future.

It remains a cost-effective way to conduct missile and store separation tests. Flight Systems CTF (combined task force) operations officer Edward Mickle said, “We’re still receiving customer calls for this wind tunnel on a regular basis.”

The wind tunnel is expected to continue to be used in the development of hypersonics. Although operations at the hypersonic level cannot be conducted within 4T, the tunnel provides groundwork before a test article is moved to a facility with a higher Mach capability, such as the AEDC Von Kármán Gas Dynamics Facility.

“4T will play a role in the hypersonics surge, even though the speed regime is not what you would consider hypersonic, because the tunnel is foundational to that work,” said Lt. Col. David Hoffman, director of the Flight Systems CTF.

Wind Tunnel 4T has received additional upgrades through the US Air Force Test Investment Planning and Programming (TIPP) program. The facility was shut down for around 18 months in 2013 for modernization work.

During this time, the CTS mechanical and control systems were upgraded to increase position accuracy. System load capacity was also increased by around 40%, enabling 4T to accommodate larger models.

The data acquisition system for 4T was also updated through TIPP to one which allows for time stamping at the point of data acquisition, as well as higher data acquisition and processing rates.

Flight Systems CTF Technical Advisor Scott Meredith said efforts have recently been made to make analytics part of the deliverables provided to test customers. Analysts in the test facility provide real-time data analysis and have developed and use tools to help customers make decisions to optimize tests.

“That information is more valuable the sooner you get it into the decision-makers’ hands,” Meredith said. “Ten business days after end of testing, we’re getting quick-look reports in customer and program offices’ hands to help with rapid decision-making for the test programs. We then follow up with a more detailed technical report on every test that comes through our facilities.”

Those in the Flight Systems CTF agree that a half-century after its first test 4T continues to fill a much-needed niche in medium-scale transonic and supersonic testing.

“That vision from 1967 is still correct,” Flight Systems CTF operations officer Edward Mickle said. “There was some good foresight put in. There was some really good thinking put in. And it’s still being used.”

This article was originally published by the AEDC.
