Supersonic testing: Boom or bust?

0

Concorde’s sonic boom sounded like a mortar bomb going off and could rattle windows on flight paths. Although the loud bangs annoyed people, it wasn’t noise that ended Concorde’s life, after 27 years of operation, in 2003. Instead, it was the harsh commercial reality of operating a supersonic aircraft and the publicity from a terrible accident that ended aviation’s supersonic dream.

However, recent studies by aviation authorities and government bodies around the world show that the public are more intolerant of aviation noise than ever before. Most experts believe commercial supersonic aircraft will never return to the skies, unless a way is found to eliminate sonic booms. Fortunately, after decades of research and testing, NASA engineers are close to solving the problem.



Community testing

NASA has been developing simulation models for its Low-Boom Flight Demonstration (LBFD) project, and tests on the ground, including in wind tunnels, suggest they can reduce the boom to a ‘sonic thump’ that would be acceptable to the public. The next stage in LBFD is to test the theories in flight. NASA recently awarded Lockheed Martin a US$247.5m contract to build the supersonic X-59 test airplane to demonstrate its Quiet Supersonic Technology (QueSST). The X-59 will cruise at 55,000ft at 940mph (15,000km/h) and should create a sound around 75PLdB (Perceived Level decibel) on the ground, about as loud as a car door closing.

QueSST

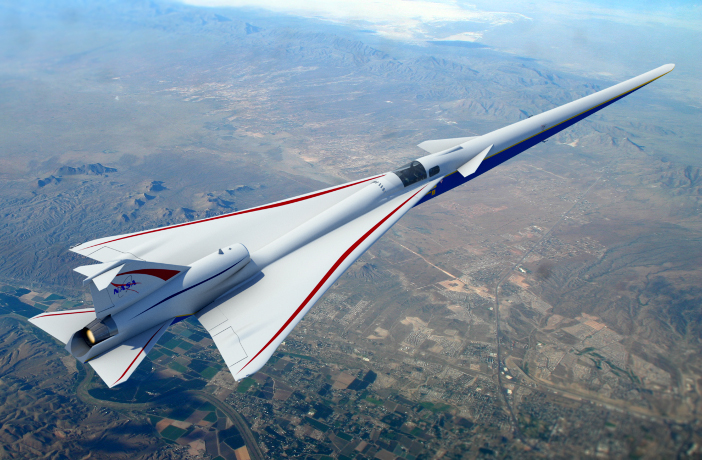

Artist’s impression of X59 QueSST (Image:NASA)

After QueSST’s initial demonstration two years of testing from mid-2022 will involve flying over residential areas of cities in the USA to gauge public reaction. It’s a long process, but NASA hopes its test results will satisfy regulators at the Federal Aviation Administration (FAA) and the International Civil Aviation Organization (ICAO) and ideally lead to a standard for the design of low-boom supersonic air planes by 2025.

“Tests over cities are critical because we need to understand if people accept the sound of a low-boom supersonic aircraft. It could still be irritating to some and regulators need information with which to set acceptable noise levels,” says Peter Coen, NASA’s commercial supersonic technology project manager.

“People’s attitude to noise has changed. Most noise from aircraft is now localized around airports. But with supersonic aircraft everyone is potentially exposed.

“The ultimate goal of the LBFD project is to do the community tests with the experimental X-59. We’ll have sensors in communities and compare public responses to different noise levels.”



Wind tunnel results

NASA has been conducting wind tunnel tests with an X-59 model at the Langley Research Center in Hampton, Virginia. The tests are carried out in a 12ft (3.6m) tunnel to collect low-speed aerodynamic stability and control data, which is then used to develop simulation models and refine vehicle flight controls.

There are three phases – static stability and control tests, dynamic forced oscillation tests, and flow visualization tests using smoke and laser techniques. During the oscillation tests, NASA’s engineers measure the aerodynamic damping derivatives as the X-59 model is put though roll, pitch and yaw motions. The damping derivatives are able to model aircraft response to inflight turbulence. The smoke and lasers then illuminate the airflow, which provides insights into how the vortices created by the wings and canards behave.

“The wind tunnel tests are highly accurate simulations that give us detailed measurements of the pressure fields around the model X-59. The results make us pretty confident that our computational fluid dynamics [CFD] are working,” says Coen. “The hardest part is designing the tests to keep the shockwaves spaced equally at the back, where lots of pieces interact, such as exhausts, tail and trailing edge of the wing. It has
to be a sensitive design.”

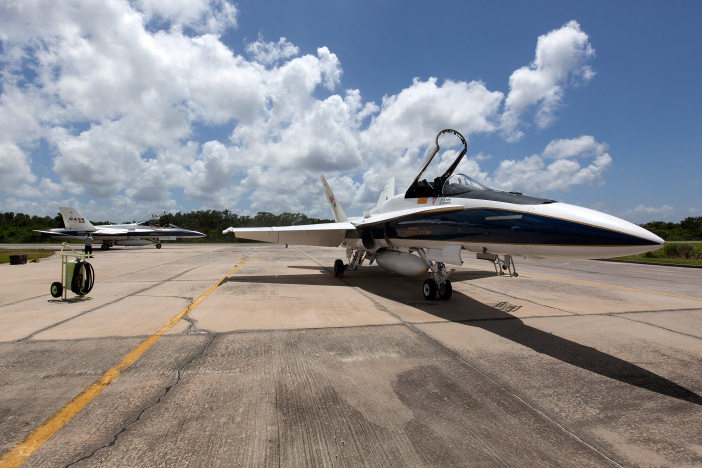

A NASA F-18 jet is prepared for takeoff from the agency’s Shuttle Landing Facility at NASA’s Kennedy Space Center in Florida



Sound research

Before the X-59’s design is finalized, NASA has also conducted tests with its own LBFD aircraft this November. The flight series, called Quiet Supersonic Flights 2018 (QSF18), used a F/A-18 research aircraft
to perform supersonic dives that produced a soft sonic thump over residential areas in Galveston, Texas.

The F/A-18 dived from 49,000ft and briefly went supersonic, before recovering to level flight at approximately 30,000ft. NASA engineers installed audio sensors on the ground to measure the acoustic levels. The main goal of the tests was to refine the techniques used for collecting community response data, but the flights also provided data to support new noise standards for supersonic flights over land.

weather balloon

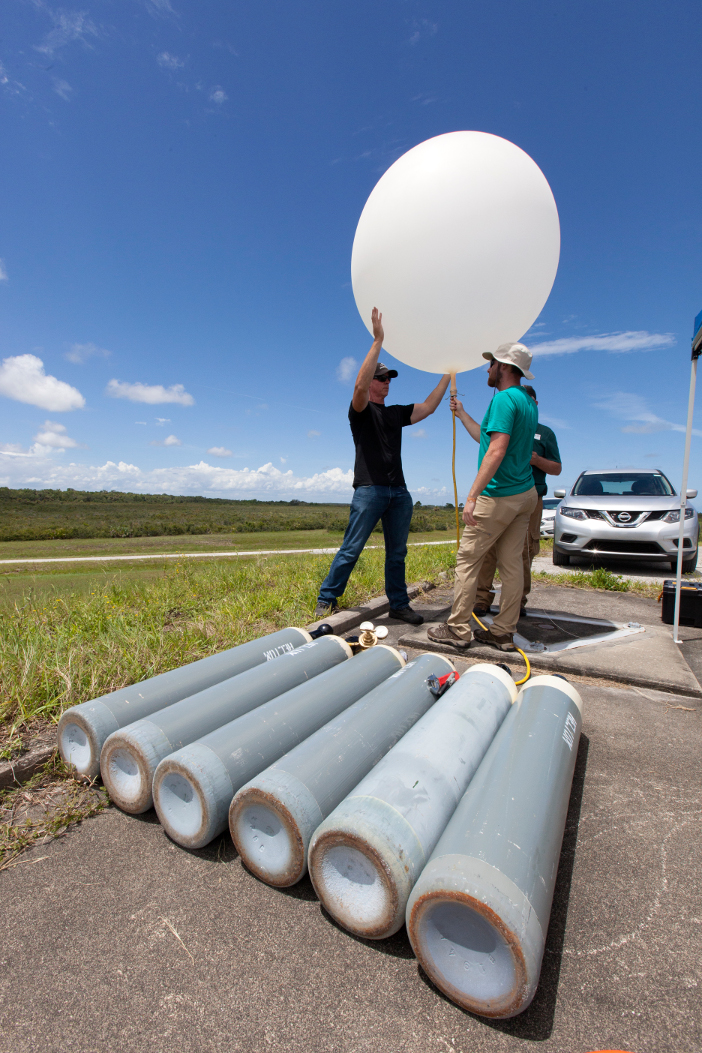

Researchers launch a weather balloon as part of NASA’s Sonic Booms in Atmospheric Turbulence research project

“The Galveston tests were an important precursor to the X-59 project because we need to learn the best ways of engaging communities, conducting surveys and collecting acoustic data. We’ve done similar research flights before to prove that our flights are safe and that the sounds that we plan to create are not damaging,” says Coen.



Aerodynamic shaping

The separate projects will lead to extensive testing of the X-59 itself in early 2022. A number of ideas are influencing the experimental aircraft’s design, to quieten noise levels by around 30dB. For example, X-59 will fly at between Mach 1.6 and Mach 1.8, rather than Concorde’s Mach 2, to allow the use of an engine with a slightly higher bypass ratio and a less complicated top-mounted engine inlet. In addition, NASA has designed exhaust nozzles that mix slower and higher speed flows more effectively to cut jet velocity. It slows down the blast from the back of the engine, reducing noise.

But the main noise-reduction technique is to redesign the aircraft to reshape the acoustic signature. A sonic boom consists of a double bang on the ground that is caused by two large pressure pulses. As the random shockwaves travel away from the aircraft at the speed of sound, they pile up and coalesce. The engineers aim to reshape the acoustic signature of the boom by preventing sonic waves piling up.

Peter Coen

Peter Coen with Quesst model (image: NASA)

“You shape every aspect of the airplane to make the shockwaves as close to equal strength as you can. When they’re as evenly distributed as possible along the length of the airplane, changes in temperature are small and the waves don’t coalesce. When the signal reaches the ground, it’s smeared out. Instead of two loud bangs, there’s a pressure change and a soft thump,” says Coen.

Once NASA accepts the aircraft from Lockheed Martin in late 2021, it will perform additional flight tests to prove the technology works and the aircraft is safe. It will then fly multiple times over arrays of microphones in the desert near the Armstrong Flight Research Center in California. Engineers will collect data showing NASA the ground signature, and how it varies in different atmospheric conditions. Then the acoustic validation phase will begin.



Ground and air measurement

According to Coen, testing will first seek to improve the understanding of how the acoustic signature behaves near the aircraft as well as on the ground.

There are a couple of techniques available to engineers. One is air-to-air probing, where the X-59 is flown at
a steady level while another aircraft with a measurement device mounted on a nose boom flies in formation. The second aircraft flies in and out of the X-59’s acoustic signature, so it can collect details of the pressure on the near field.

NASA plans to use a similar technique to measure the acoustic signature before the aircraft passes through the turbulent atmospheric boundary layer. A motor glider equipped with a microphone sensor system will
fly to 10,000ft and record the signal there, as well as in the clean, smooth air of Earth’s boundary layer.

NASA has also invented a testing method called Background-oriented Schlieren (BOS) photography.
This method adapts the Schlieren technique used in wind tunnels to visualize the patterns of shockwaves
by altering the light paths that enter the camera. The shockwaves become visible when they cause differences in density.

“Our new technique is exciting,” says Coen. “It takes advantage of advances in digital signal processing to make shockwaves visible in almost any environment, including an airborne situation.

“We can take an image of an airplane in the air and get a detailed look at the shockwave pattern emanating from it. Both the Schlieren and air-to-air probing will tell us what’s going on with the flow around the airplane, so we can diagnose any problems with the acoustic signature.”



Commercial rivals

NASA is not the only organization working to bring about supersonic flight. Startup Boom’s XB-1 two-seater prototype will be flight tested for the first time in 2019 and should be capable of Mach 2.2. The regional aircraft Boom is developing has a similar design to Concorde, but Boom says that new materials and technology will enable it to fly faster and more quietly.

Boston, Massachusetts-based Spike Aerospace is also developing a low-boom signature supersonic business jet, the 18-passenger S-512 Quiet Supersonic Jet. Spike intends to have the S-512 aircraft flying by early 2021, with customer deliveries beginning in 2023. The S-512 will have a range of 6,200 miles (9,977km) and a cruise speed of Mach 1.6.

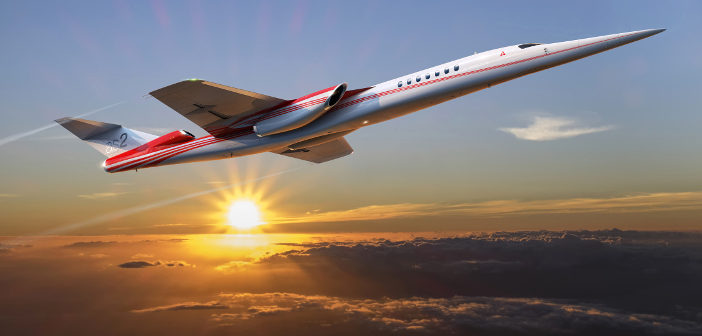

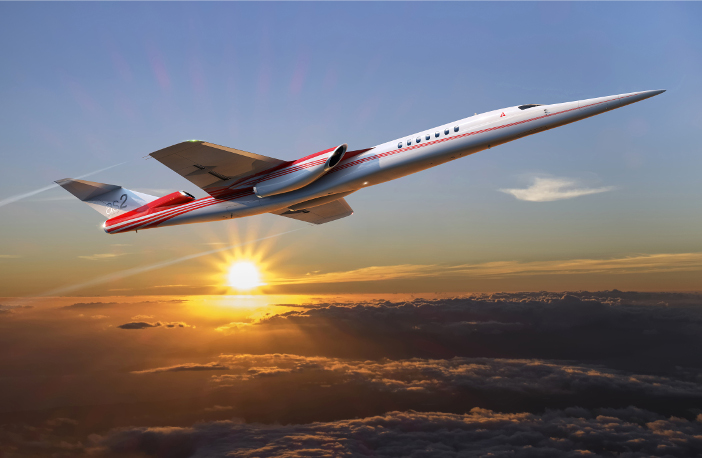

Meanwhile, Aerion has also partnered with Lockheed Martin to develop the AS2 aircraft that can fly at Mach 1.2 with no sonic boom. It will be a small supersonic business jet for around a dozen passengers, launching in 2025.

Jeff Miller from Aerion says the AS2 will meet Stage 5 take-off and landing noise standards that come into effect in 2020. It will be the first in a family of increasingly capable supersonic engines. Aerion is carrying out standard wind tunnel tests and vibration tests on various components at rig level. But, as in the NASA project, flight testing will be essential to assess reliability in a range of conditions and tests at supersonic speeds will mainly be conducted over water.

Aerion’s noise-reduction strategy is different to NASA’s. The AS2 will operate at speeds up to Mach 1.2 without a boom reaching the ground, Miller says. “This is technically known as Mach cut-off flight, but we call it boomless cruise. Rather than aerodynamic shaping, we will use onboard and remote sensors to evaluate atmospheric conditions and limit cruise speed to a setting at which a sonic boom would refract off
warmer layers of the atmosphere or dissipate before reaching the ground,” he says.

However, Aerion is monitoring NASA’s low-boom tests with great interest and could incorporate it into future aircraft.

Boom SB1 aircraft

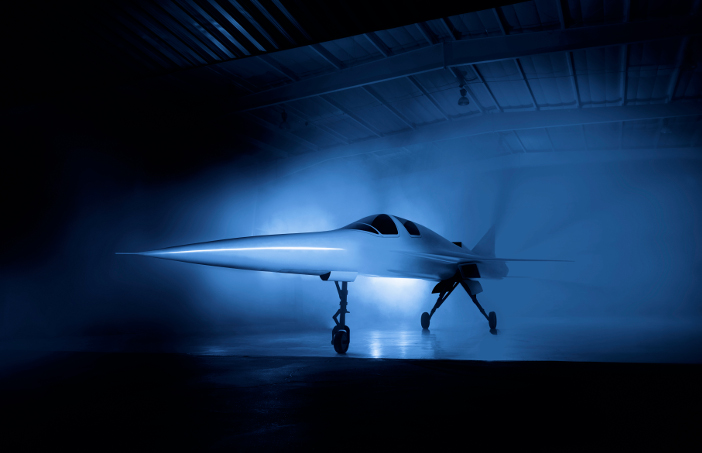

Boom Technology’s XB-1 Baby Boom

Although NASA sees the sonic boom as the main commercial barrier for supersonic flights, there are other important concerns, Coen says.

“We’re focusing on the sonic boom problem for now, but we’ve not taken our eyes off two other important issues – take-off and landing noise and emissions. We’ve already made progress in those areas and when we finally break the sonic boom problem, we’ll turn our full attention to the other issues,” says Coen.

With a viable design, testing techniques, expertise and funding, all of the necessary pieces are in place
for aircraft manufacturers to reintroduce commercial supersonic aircraft to our skies after 2025. All eyes
will be on the QueSST and the LBFD program over the coming years to see if NASA’s engineers can beat
the boom once and for all.



This article was written by David Smith and originally published in the December 2019 issue of Aerospace Testing International.
