Future proofing: Next generation aircraft engine testing

0
Scott Herber, GE Aviation

Scott Herber, evaluation and test engineering manager at GE Aviation

One of the emotions most apparent in Scott Herber when talks is the pride he takes in his work. Herber is the evaluation and test engineering manager at GE Aviation at its Evendale headquarters in Ohio. Evendale celebrates its 70th anniversary this year and is the center of GE Aviation’s testing operations. It’s testing facilities have seen significant investment recently in equipment and laboratories to enable engineers to test the latest engines and deal with challenges in areas such as thermal management, acoustics and emissions. The GE Aviation testing team has never been busier – both with internal projects and the development programs of external customers.





Passport to success

GE Aviation’s Passport entered service at the end of last year with Bombardier’s Global 7500 business jet. The ultra-long range, 16,500 lbf-thrust (73kN) business jet engine comprises a design which blends the engine and cowling nacelle together. Other features include a 52in-diameter (132cm) titanium fan blisk, the first time a blisk of this type has been used in an engine of this size and a core scaled down from the Leap airliner engines.

GE Passport engine

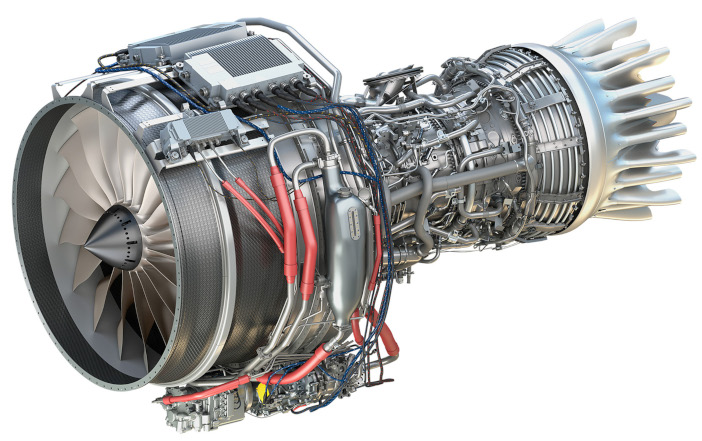

The Passport is a twin-spool, axial-flow turbofan engine for business jets

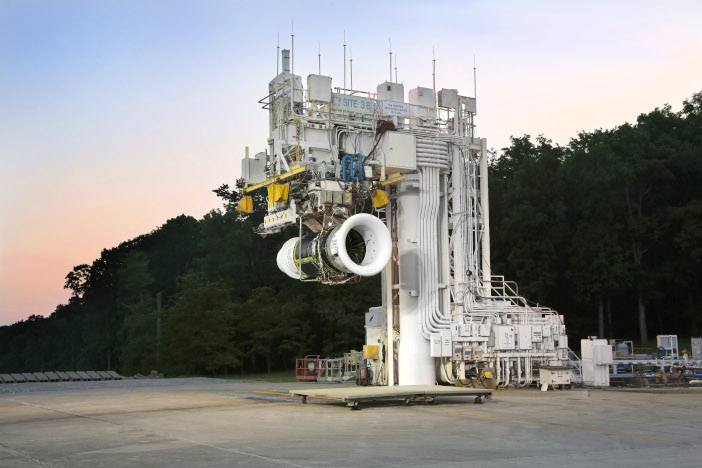

The engine took almost nine years to develop and was tested at Evendale and GE Aviation’s site in Peebles, Ohio. Twelve Passport engines and a dedicated team were used in the rigorous ground and flight test program. Herber says, “The first time you see an engine you worked on take flight is a humbling experience. It’s thrill that gives you the continued motivation to develop the next product.

“It reminds you that people are depending on you to develop a safe, lower cost, high performance product.”



Under pressure

Another major development program within GE Aviation currently is the GE9X, the world’s largest jet engine, which will be used on Boeing’s 777X aircraft. The engine, which will have thrust of 105,000 lbf (470kN), and is 14.5ft (4.7m) wide. The GE9X started flight testing in March 2018 and is due to be flown on the 777X this year.

The development of the GE9X required the construction of new test facilities at Evendale, notably the A20 combustion test cell, because of the overall pressure ratio is very high in
the engine. This US$120m cell provides realistic combustor inlet conditions of 1,000psi and 1,475˚F (800˚C), the same as would be found if the combustor was already installed within the engine. The cell is around 20ft (6m) wide, 200ft (60m) long x 30ft (9m) high.

Herber says, “The combustor is in the heart of the engine, so it can be very difficult to take measurements in a fully assembled aircraft engine. It can also be difficult to vary the parameters that govern combustion performance and efficiency in an aircraft engine.”

The A20 cell enables engineers to vary the conditions the combustor would see during operation and tune different aspects of the combustor and the combustion system to meet requirements for durability and emissions. The design of the facility also enables the collection of data that is impossible or very difficult to collect in a full engine test. It is used early in the engine development cycle to adjust the combustion and so that more-informed hardware choices upstream and downstream of the combustor can be made. “We use
it to investigate and duplicate any issues found in the field to validate fixes and to validate and explore new combustion spaces in new engine designs,” says Herber. “We test various designs and materials, as well as different cooling and purging schemes and different
fuel nozzles and cases in it.”



Thermal Management

Alongside the A20 test cell, another recent addition to the facilities at Evendale is the VESIL (Vehicle Energy Systems Integration Laboratory). The VESIL lets engineers simulate and test different thermal systems and energy transfer mechanisms that would be found on an aircraft. This allows them to prove the reliability of systems before flight tests and tweak aspects of the design to improve thermal efficiency. “In order to reach the next level of performance, people are optimizing the aircraft and power plant systems as a whole. The VESIL lab allows us to simulate not just the engine but also all the systems that are on
an aircraft and would be involved in heat transfer,” says Herber.

The large VESIL laboratory contains lots of color-coded pipes and valves. It has a combustion section to simulate aircraft-engine levels of heat generation and several auxiliary rooms that contain different heating and cold fuel systems and an electrical substation to enable the testing of electrical devices. Components can be tested independently, system by system, or integrated as a whole. There is a fuel tank that engineers can pre-chill or preheat depending on the test. In addition, the laboratory contains air cycle machines, vapor cycle machines oil heating and cooling machines and electrical heating and cooling machines. Herber says, “Anything that could be a sink or source of thermal energy in an aircraft we can simulate. When we have a highly integrated system installed and we are testing multiple heat transfer aspects, it’s difficult to identify where the test article is because different pipework
and pieces are connected so intimately.”

VESIL is proving useful in both civil and defense sectors as all-electric and more electric aircraft are being developed. Like the A20 cell, the VESIL’s aim is to solve thermal issues early on in the development process, before flight testing. “The more efficiently you can move heat around the better. You can solve a problem with additional cooling, but that comes at a price in weight or efficiency of the engine’s operation.

“By the time you get to a flight test that process can be expensive. Whereas a ground test in VESIL helps you avoid repeating expensive tests,” says Herber.



Outside the lab

One of GE Aviation’s highest profile pieces of testing equipment is its 747-400, which is based at its Flight Test Operations center in Victorville, California. The location was selected for partly because it has some of the calmest and driest weather in the USA.

GE9X Testbed

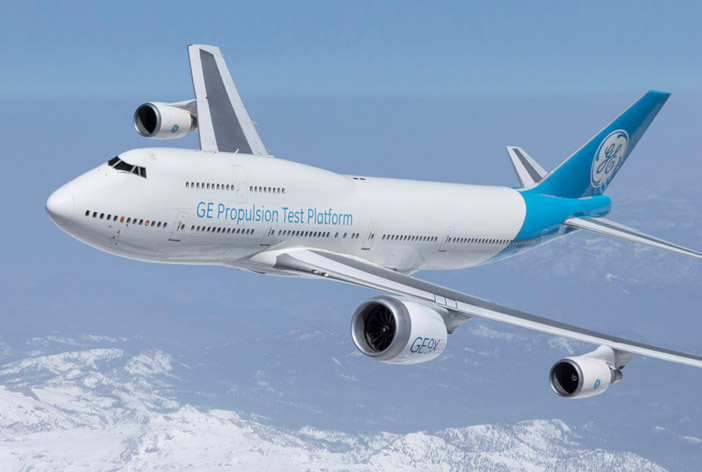

General Electric Boeing 747-446 GE9X Testbed photographed on April 13, 2018 (Image: Chad Slattery)

The 747-400 has most recently been used to flight test the GE9X, so that engineers can test it alongside the known performance envelope of the three GE CF6 engines already fitted to the aircraft. The 747-400 started life as a standard passenger aircraft. GE bought it and retrofitted it. When an engine is being tested it is swapped out for the standard CF6 in the number-two engine position using a specially-designed pylon and interfacing hardware, which links onboard instrumentation to measure pressure, temperature, strain, clearances and deflections. Herber says, “The aircraft cabin has been heavily modified. There are racks and racks of data acquisition equipment and interfacing equipment that allows the aircraft to talk to the different engine as if they are the engine that should be on it.

“A CF6 is very different technology from the development engines we are testing. The ability to integrate the test engine’s communications and control interfaces with the 747 is one of our flight test team’s core strengths.”



Going supersonic

One of the most recent partnership announced by GE Aviation is also one of its most interesting. Last October, it was revealed GE Aviation is developing the Affinity engine for one of the leading companies of the new cadre of supersonic aircraft developers, Boeing-backed Aerion. The Affinity engine is a twin-shaft, twin-fan turbofan. It will be used on the company’s 12-passenger AS2 business jet. Aerion plans to be flight testing a prototype of the AS2, which is designed to fly at a cruising speed of Mach 1.4, in 2023.

It’s likely the bulk of testing for Affinity will be conducted at Evendale, says Herber, a project the site is prepared to perform. The company has considerable experience with supersonic engines for jet fighters.

“We are ready to test supersonic engines like Affinity,” says Herber. “Engines for supersonic aircraft aren’t new to GE, although it has been a while since a civil supersonic design was considered. We are entering a rebirth of civil supersonic transport.

“There are additional technological questions and issues to be resolved. Civil has different requirements from a military aircraft. The experience of our design engineers, as well as our testing personnel and facilities, will enable us to deliver it.”

The bottom line is that supersonic passenger aircraft won’t be going anywhere without supersonic engines. That what will likely be one of the first of these engines will be developed by one of the largest and oldest industrial companies in the world is proof of the efforts GE Aviation has gone to nurture innovation. “We purposefully encourage innovation internally and that comes from leadership. We’re encouraged to make mistakes early and learn from them and move on; to take bigger risks,” says Herber. “The development of the LEAP engine is one of the best examples of how this has worked for us.

“I’m excited about the direction we are moving in GE Aviation. We’ve got a strong installed base and a lot of exciting products in development, which will keep us busy in test and will enable the next generation.”

Innovation may be a requirement for survival, but GE Aviation’s reputation is also built upon a pride in the work and its products that one suspects carries down from leadership through the rest of the testing team. It’s a reputation that means Evendale is hosting several projects for external customers and is always looking to partner with more external companies.

“We have a proven track record of safely and efficiently running these tests and have some unique capabilities. It’s taken several decades to build everything we have at Evendale. We’re fortunate to have had the sustained high level of support from the company to place us in that position” says Herber.

“Others could develop those facilities, but it would be expensive and time-consuming for them to do so. We can offer access to the capabilities that our facilities offer, along with our expertise to anyone interested. We’re open for business.”
