3D printed metal parts show strength through testing

0

The use of 3D printing is becoming more common in the US Air Force’s supply chain for its fifth-generation aircraft. In December 2018, a metallic 3D printed part was installed by 574th Aircraft Maintenance Squadron maintainers on an operational F-22 Raptor during depot maintenance at Hill Air Force Base, Utah.

Robert Lewin, 574th Aircraft Maintenance Squadron (AMXS) director said, “One of the most difficult things to overcome in the F-22 community, because of the small fleet size, is the availability of additional parts to support the aircraft.”

The use of 3D printing is growing mainly because it gives maintainers the ability to acquire replacement parts on short notice without minimum order quantities. This not only saves money, but also reduces the time the aircraft is in maintenance.

The printed bracket installed on the F-22 in December at Hill Air Force Base (AFB) will not corrode and is made using a powder bed fusion process. This process uses a laser to build the part layer by layer from a titanium powder. A new bracket can be ordered and delivered to the depot for installation as quickly as three days.

The printed part replaced a corrosion-prone aluminum component in the kick panel assembly of the cockpit that is replaced 80% of the time during maintenance.

aircraft bracket

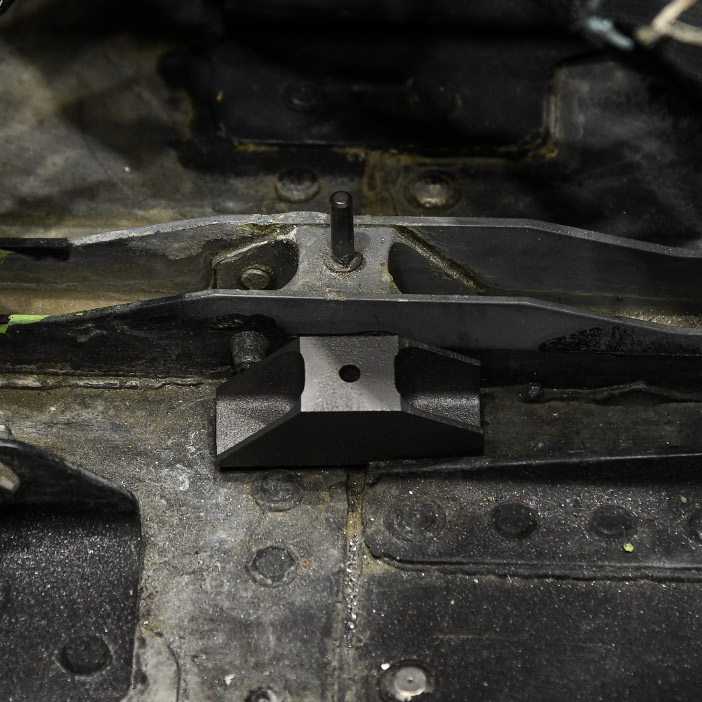

A new metallic 3D printed part alongside the aluminum part it will replace on an F-22 Raptor during depot repair at Hill Air Force Base, Utah (Image: US Air Force/R. Nial Bradshaw)

Robert Blind, Lockheed Martin modifications manager said, “We had to go to engineering, get the prints modified, we had to go through stress testing to make sure the part could withstand the loads it would be experiencing – which isn’t that much. That is why we chose a secondary part.

The part will be monitored while in service and inspected when the aircraft returns to Hill AFB for maintenance. If validated, the part will be installed on all F-22 aircraft during maintenance.

“We’re looking to go a little bit further as this part proves itself out,” added Blind.

The printed titanium bracket is the first of many metallic additive manufactured parts the US Air Force (USAF) plans to introduce through public-private partnerships. There are at least five more metallic 3D printed parts planned for validation on the F-22.

“Once we get to the more complicated parts, the result could be a 60-70 day reduction in flow time for aircraft to be here for maintenance,” added Lewin.

This will enable faster repair and reduce the turnaround returning the aircraft back to the warfighter.



This article was originally published on the USAF’s Robins Air Force Base website.
